12kV Mv Switchgear Component for VS1

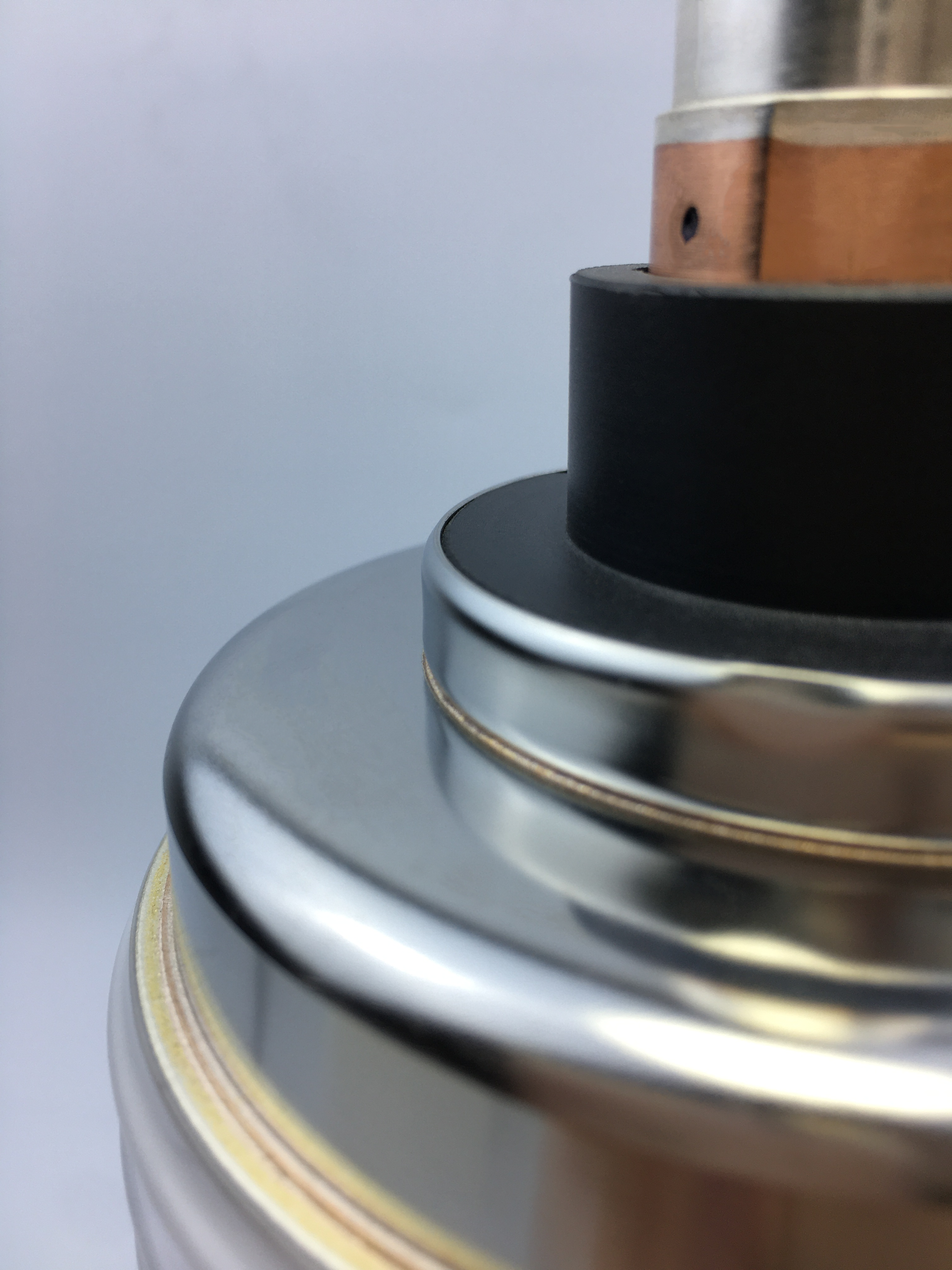

Name: 12kV Mv Switchgear Component for VS1
Brand: Kaisaier
Rating: 5.0 (64 reviews)

Model:
TD-12/1600-31.5C
Brand:
Kaisaier
Code:
1015

Availability:

Quantity:



Inquire Add to Basket

Product Description

Discover a new era of power distribution efficiency with the TD-12/1600-31.5C Vacuum Interrupter. Meticulously engineered to excel in 12kV applications, this interrupter sets a new standard for reliability, safety, and performance.

Unleash Unparalleled Efficiency:The TD-12/1600-31.5C Vacuum Interrupter is designed to optimize power distribution efficiency. Its innovative design and cutting-edge technology work together seamlessly to swiftly extinguish electrical arcs, ensuring uninterrupted power flow.

Precision Craftsmanship:Crafted with precision and meticulous attention to detail, the TD-12/1600-31.5C stands as a testament to our commitment to quality. Its robust construction ensures longevity and consistent performance even in the most demanding environments.

Enhanced Arc Quenching:Equipped with advanced arc quenching capabilities, this interrupter ensures that electrical arcs are extinguished swiftly and effectively. This is essential for maintaining the integrity of your power distribution network and safeguarding equipment.

Adaptability to Varied Conditions:The TD-12/1600-31.5C is designed to handle diverse electrical scenarios. Whether facing high currents, rapid switching, or voltage fluctuations, its performance remains steadfast, ensuring reliability regardless of conditions.

Meeting the Future Head-On:As technology advances and energy demands evolve, the TD-12/1600-31.5C Vacuum Interrupter is prepared to meet the challenges of tomorrow. Its forward-looking design underscores our commitment to providing solutions that remain relevant over time.

Elevate your power distribution systems to new heights of efficiency, safety, and performance with the TD-12/1600-31.5C Vacuum Interrupter. Embrace a new standard of excellence in power management and experience the transformative impact of advanced engineering in your electrical infrastructure.

Key features:

Size: Φ98 mm*275 mm

Rated Frequency: 50 Hz

Rated Voltage: 12 kV

Rated Current: 1600A/1250 A/630A

Rated Short-circuit Breaking Current: 31.5 kA

Lighting Impulse Withstand Voltage (Peak): 85 kV

1015-3 1015-4 1015-2 1015-6

switch Vacuum Interrupter for VCB Indoor Vacuum Interrupter for VCB highly reliable Vacuum Interrupter for VCB breaker Mv Switchgear Component Vacuum Interrupter for VCB Electric breaker high insulation Mv Switchgear Component

RELATED PRODUCTS

Viewed

Founded in 2003, Kaisaier is a professional hi-tech enterprise, mainly engaging in the design, manufacture and sales vacuum interrupter and embedded poles.

PRODUCT CATEGORY

QUICK LINKS

CONTACT US

No.99 Huanghe road, east industrial zone of Xindu, Chengdu, Sichuan, PRC

+86-28-83939066

tangling@kaisaier.cn

MAIN TECHNICAL DATA		TYPE
		TD-12/1600-31/5C
VOLTAGE RATINGS AT RATED CONTACT STROKE
Rated Frequency	HZ	50
Rated Voltage	kV	12
Short-time(1min)Power-frequency Withstand Voltage	kV	48
Lighting Impulse Withstand Voltage(Peak)	kV	85
CURRENT RATINGS
Rated Current	A	1600	1250	630
Rated Short-circuit Breaking Current	kA	31.5	31.5	31.5
Rated Short-time Withstand Current	kA	31.5	31.5	31.5
Rated Peak Withstand Current	kA	80	80	80
Rated Short-circuit Making Current	kA	80	80	80
Rated Single Capacitor Bank Breaking Current	A	630*
Rated Back-to-back Capacitor Bank Breaking Current	A	400*
Rated Duration of Short-circuit	s	4
Circuit Resistance at Min. Rated Contact Force	μΩ	≤ 13
MECHANICAL DATA
Contact Close Force Due to Bellows and Atmosphere	N	90 ± 40
Counter Force of Contact at Full Stroke	N	180 ± 40
Mass OF Moving Parts	kg	1
LIFE
Mechanical Endurance	Times	10000
Contact Limit Erosion	mm	3
Switching Operations of Rated Short-circuit Breaking Current	Times	30
Shelf Life	Years	20
Internal Gas Pressure	Pa	＜1.33 × 10-3
RATED OPERATING SEQUENCE	O-0.3s-CO-180s-CO
MECHANICAL DATA OF VACUUM SWITCH EQUIPPED WITH THE INTERRUPTERS
Average Opening Speed(first 6mm）	m/s	1.1 ± 0.2
Average Closing Speed(last 6mm)	m/s	0.6 ± 0.2
Contact Bounce Duration at Closing Operation	ms	≤ 2
Clearance Between Open Contacts	mm	11 ± 1
Out of Simultaneity of Contact Closing and Opening	ms	≤ 1
Rated Contact Pressure	N	3000⁺³⁰⁰₀
Added External Contact Force at Contact Touch Point	N	2100⁺²⁰⁰₀
Maximum Rebound During Opening	mm	≤ 2
Note 1:Meets or exceeds the electrical endurance requirements of calss E2 per IEC 62271-100 and GB 1984-2014. Note 2:"*"Rated insulation values require external insulation, such as SF6,transformer oil or solid dielectric material etc. Note 3:"★"Rated characteristics to be given on request. Note 4:In order not to damage the metal bellows, the movable stem should be prevented from rotation when assembling. For more requirements please check the instructions of Usage.
