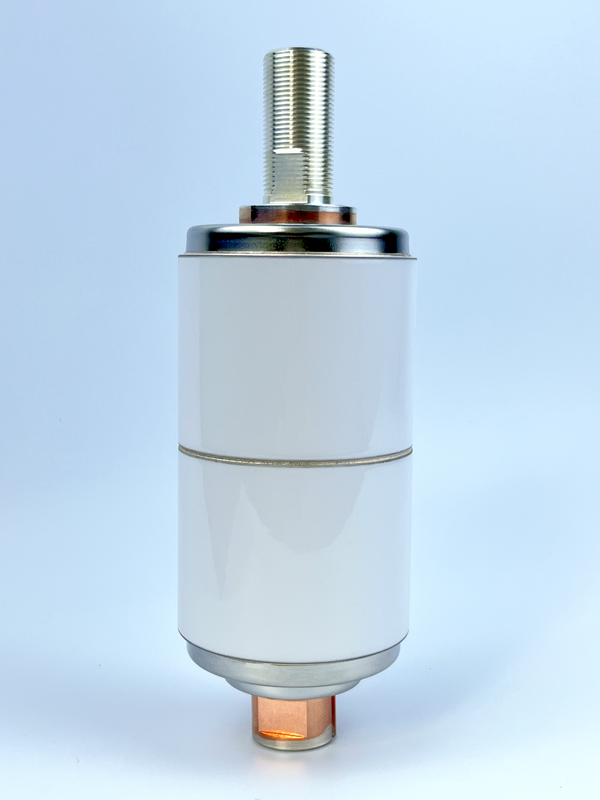

24kV Strong Copper No Explosion Mv Switchgear Component

A compact design and environmentally friendly vacuum interrupter for GIS

Model:
TD-24/1250-20
Brand:
Kaisaier
Code:
1190

Availability:

Quantity:



Inquire Add to Basket

Product Description

A fundamental part for medium-voltage switch circuit breakers. Intended to guarantee proficient curve smothering and interference of electrical flows, this item successfully protects gear inside the circuit from potential harm brought about by overvoltage and overcurrent. Made with most extreme accuracy and unwavering quality, the 24kV Vacuum Curve Extinguishing Chamber is the ideal decision for experts looking for first class execution and assurance for their electrical frameworks.

Key features:

Size: Φ81 mm*236 mm

Rated Frequency: 50Hz

Rated Voltage: 24kV

Rated Current: 1250A

Rated Short-circuit Breaking Current: 20kA

Lighting Impulse Withstand Voltage (Peak): 125kV

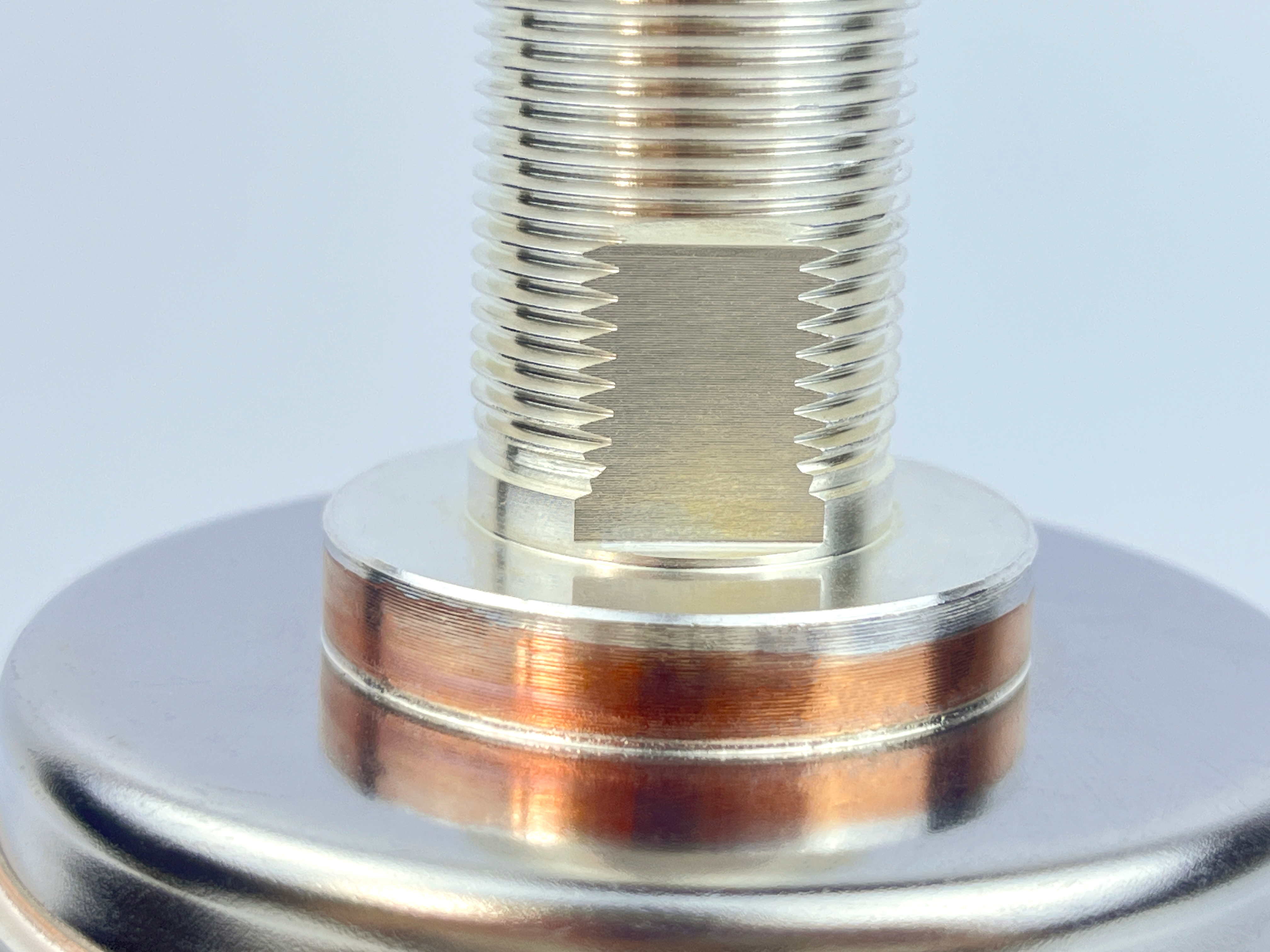

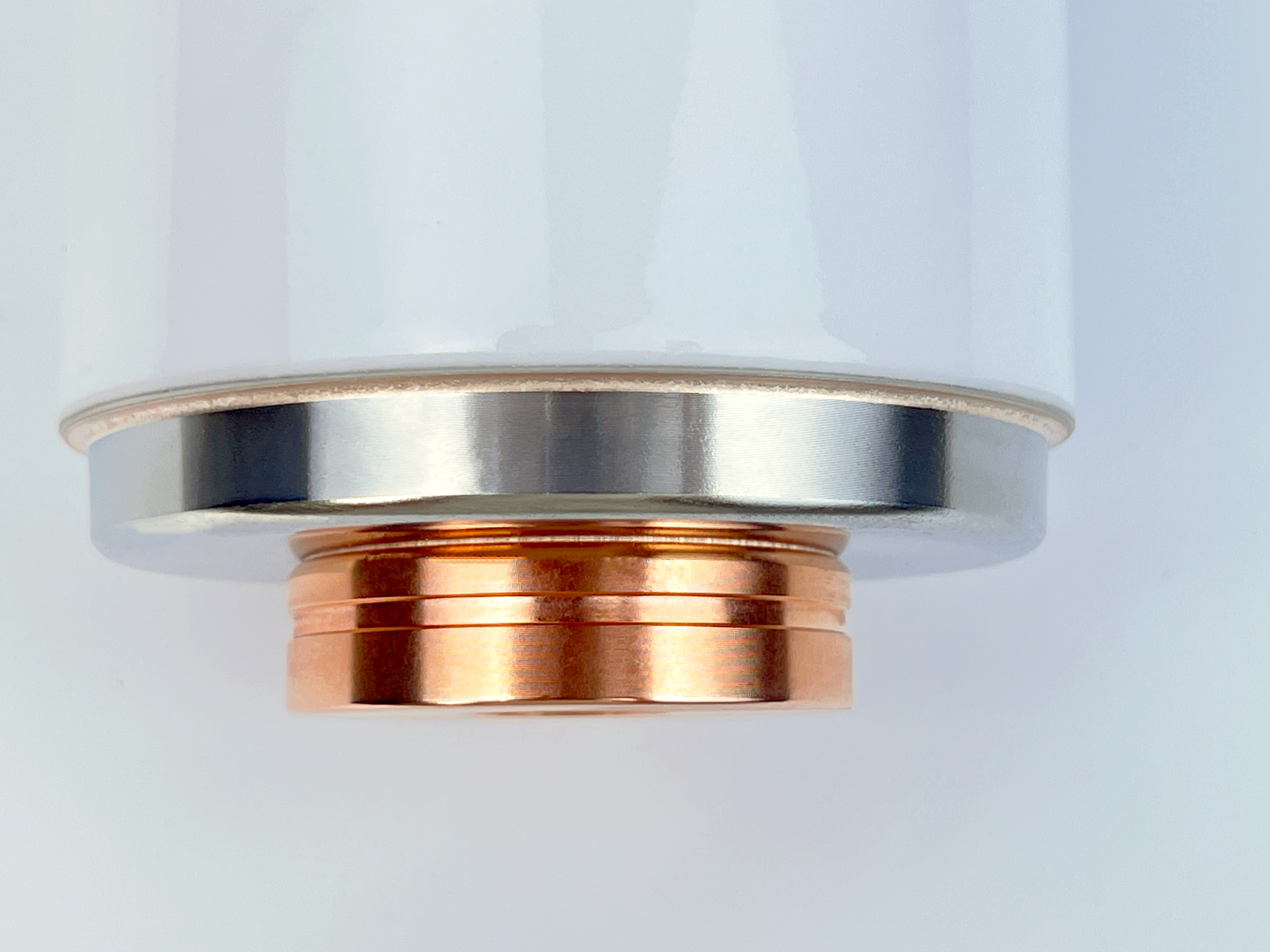

1190-1 1190-2 1190-6 1190-5 1190-4

Copper Mv Switchgear Component strong Copper Mv Switchgear Component strong Mv Switchgear Component Copper No explosion Mv Switchgear Component No explosion Mv Switchgear Component strong No explosion Mv Switchgear Component

RELATED PRODUCTS

MAIN TECHNICAL DATA		TYPE
		TD24/1250-20
VOLTAGE RATINGS AT RATED CONTACT STROKE
Rated Frequency	HZ	50
Rated Voltage	kV	24
Short-time(1min)Power-frequency Withstand Voltage	kV	42/65*
Lighting Impulse Withstand Voltage(Peak)	kV	125*
CURRENT RATINGS
Rated Current	A	1250
Rated Short-circuit Breaking Current	kA	20
Rated Short-time Withstand Current	kA	20
Rated Peak Withstand Current	kA	50
Rated Short-circuit Making Current	kA	50
Rated Single Capacitor Bank Breaking Current	A	630★
Rated Back-to-back Capacitor Bank Breaking Current	A	400★
Rated Duration of Short-circuit	s	4
Circuit Resistance at Min. Rated Contact Force	μΩ	≤ 17
MECHANICAL DATA
Contact Close Force Due to Bellows and Atmosphere	N	90 ± 40
Counter Force of Contact at Full Stroke	N	180 ± 40
Mass OF Moving Parts	kg	0.8
LIFE
Mechanical Endurance	Times	10000
Contact Limit Erosion	mm	3
Switching Operations of Rated Short-circuit Breaking Current	Times	30
Shelf Life	Years	20
Internal Gas Pressure	Pa	＜1.33 × 10-3
RATED OPERATING SEQUENCE		O-0.3s-CO-180s-CO
MECHANICAL DATA OF VACUUM SWITCH EQUIPPED WITH THE INTERRUPTERS
Average Opening Speed(first 6mm）	m/s	1.4 ± 0.2
Average Closing Speed(last 6mm)	m/s	0.8 ± 0.2
Contact Bounce Duration at Closing Operation	ms	≤ 2
Clearance Between Open Contacts	mm	12 ± 1
Out of Simultaneity of Contact Closing and Opening	ms	≤ 1
Rated Contact Pressure	N	2000⁺³⁰⁰₀
Added External Contact Force at Contact Touch Point	N	1400⁺²⁰⁰₀
Maximum Rebound During Opening	mm	≤ 2
Note 1:Meets or exceeds the electrical endurance requirements of calss E2 per IEC 62271-100 and GB 1984-2014. Note 2:"*"Rated insulation values require external insulation, such as SF6,transformer oil or solid dielectric material etc. Note 3:"★"Rated characteristics to be given on request. Note 4:The movable stem of the VI could only suffering no more than 45Nm twisting force and in order not to damage the metal bellows, the movable stem should be prevented from rotation when assembling. For more requirements please check the instructions of Usage.
