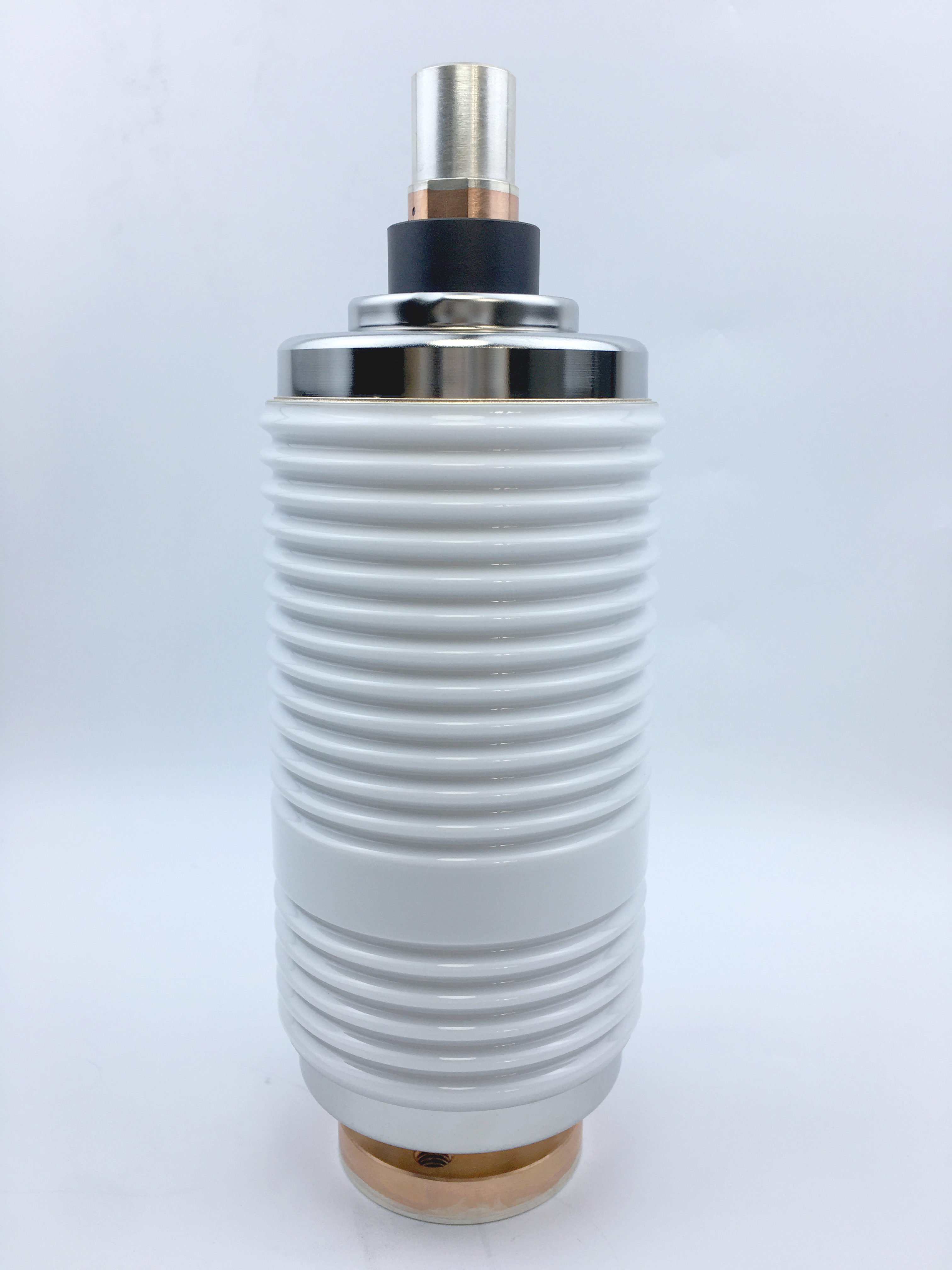

TD-12/1600-31.5C Mv Switchgear Component

Name: TD-12/1600-31.5C Mv Switchgear Component
Brand: Kaisaier
Rating: 5.0 (83 reviews)

Model:
TD-12/1600-31.5C
Brand:
Kaisaier
Code:
1015

Availability:

Quantity:



Inquire Add to Basket

Product Description

Step into a new realm of electrical performance with the TD-12/1600-31.5C Vacuum Interrupter. Designed to enhance 12kV applications, this advanced component redefines the standards of safety, efficiency, and reliability in power distribution.

Unmatched Efficiency:The TD-12/1600-31.5C Vacuum Interrupter is engineered to optimize electrical efficiency. With its innovative design, it swiftly extinguishes electrical arcs, ensuring seamless and uninterrupted power flow throughout your system.

Precision Craftsmanship:Built with meticulous attention to detail, the TD-12/1600-31.5C reflects our unwavering commitment to quality. Its robust construction guarantees durability, offering consistent performance even in demanding environments.

Advanced Arc Quenching:Equipped with cutting-edge arc quenching capabilities, this interrupter suppresses electrical arcs swiftly and effectively. This feature is essential for maintaining the integrity of your power distribution network and protecting your valuable equipment.

Adaptability to Challenges:The TD-12/1600-31.5C is designed to adapt to various electrical scenarios. Whether you encounter high currents, rapid switching, or voltage fluctuations, its performance remains steadfast, ensuring reliable operation under all conditions.

Future-Ready Engineering:As technology evolves and energy demands rise, the TD-12/1600-31.5C Vacuum Interrupter is prepared to meet the challenges of the future. Its forward-looking design embodies our commitment to providing solutions that stand the test of time.

Elevate your power distribution systems to unprecedented levels of efficiency, safety, and performance with the TD-12/1600-31.5C Vacuum Interrupter. Embrace a new standard of excellence in power management and experience the transformative impact that innovative engineering can have on your electrical infrastructure.

Key features:

Size: Φ98 mm*275 mm

Rated Frequency: 50 Hz

Rated Voltage: 12 kV

Rated Current: 1600A/1250 A/630A

Rated Short-circuit Breaking Current: 31.5 kA

Lighting Impulse Withstand Voltage (Peak): 85 kV

1015-3 1015-4 1015-2 1015-6

Vacuum Arc Extinction Switchgear Components Electrical Circuit Breakers Arc Quenching Technology High Voltage Applications Medium Voltage Equipment

RELATED PRODUCTS

Viewed

Founded in 2003, Kaisaier is a professional hi-tech enterprise, mainly engaging in the design, manufacture and sales vacuum interrupter and embedded poles.

PRODUCT CATEGORY

QUICK LINKS

CONTACT US

No.99 Huanghe road, east industrial zone of Xindu, Chengdu, Sichuan, PRC

+86-28-83939066

tangling@kaisaier.cn

MAIN TECHNICAL DATA		TYPE
		TD-12/1600-31/5C
VOLTAGE RATINGS AT RATED CONTACT STROKE
Rated Frequency	HZ	50
Rated Voltage	kV	12
Short-time(1min)Power-frequency Withstand Voltage	kV	48
Lighting Impulse Withstand Voltage(Peak)	kV	85
CURRENT RATINGS
Rated Current	A	1600	1250	630
Rated Short-circuit Breaking Current	kA	31.5	31.5	31.5
Rated Short-time Withstand Current	kA	31.5	31.5	31.5
Rated Peak Withstand Current	kA	80	80	80
Rated Short-circuit Making Current	kA	80	80	80
Rated Single Capacitor Bank Breaking Current	A	630*
Rated Back-to-back Capacitor Bank Breaking Current	A	400*
Rated Duration of Short-circuit	s	4
Circuit Resistance at Min. Rated Contact Force	μΩ	≤ 13
MECHANICAL DATA
Contact Close Force Due to Bellows and Atmosphere	N	90 ± 40
Counter Force of Contact at Full Stroke	N	180 ± 40
Mass OF Moving Parts	kg	1
LIFE
Mechanical Endurance	Times	10000
Contact Limit Erosion	mm	3
Switching Operations of Rated Short-circuit Breaking Current	Times	30
Shelf Life	Years	20
Internal Gas Pressure	Pa	＜1.33 × 10-3
RATED OPERATING SEQUENCE	O-0.3s-CO-180s-CO
MECHANICAL DATA OF VACUUM SWITCH EQUIPPED WITH THE INTERRUPTERS
Average Opening Speed(first 6mm）	m/s	1.1 ± 0.2
Average Closing Speed(last 6mm)	m/s	0.6 ± 0.2
Contact Bounce Duration at Closing Operation	ms	≤ 2
Clearance Between Open Contacts	mm	11 ± 1
Out of Simultaneity of Contact Closing and Opening	ms	≤ 1
Rated Contact Pressure	N	3000⁺³⁰⁰₀
Added External Contact Force at Contact Touch Point	N	2100⁺²⁰⁰₀
Maximum Rebound During Opening	mm	≤ 2
Note 1:Meets or exceeds the electrical endurance requirements of calss E2 per IEC 62271-100 and GB 1984-2014. Note 2:"*"Rated insulation values require external insulation, such as SF6,transformer oil or solid dielectric material etc. Note 3:"★"Rated characteristics to be given on request. Note 4:In order not to damage the metal bellows, the movable stem should be prevented from rotation when assembling. For more requirements please check the instructions of Usage.

MAIN TECHNICAL DATA		TYPE
		TD-12/1600-31/5C
VOLTAGE RATINGS AT RATED CONTACT STROKE
Rated Frequency	HZ	50
Rated Voltage	kV	12
Short-time(1min)Power-frequency Withstand Voltage	kV	48
Lighting Impulse Withstand Voltage(Peak)	kV	85
CURRENT RATINGS
Rated Current	A	1600	1250	630
Rated Short-circuit Breaking Current	kA	31.5	31.5	31.5
Rated Short-time Withstand Current	kA	31.5	31.5	31.5
Rated Peak Withstand Current	kA	80	80	80
Rated Short-circuit Making Current	kA	80	80	80
Rated Single Capacitor Bank Breaking Current	A	630*
Rated Back-to-back Capacitor Bank Breaking Current	A	400*
Rated Duration of Short-circuit	s	4
Circuit Resistance at Min. Rated Contact Force	μΩ	≤ 13
MECHANICAL DATA
Contact Close Force Due to Bellows and Atmosphere	N	90 ± 40
Counter Force of Contact at Full Stroke	N	180 ± 40
Mass OF Moving Parts	kg	1
LIFE
Mechanical Endurance	Times	10000
Contact Limit Erosion	mm	3
Switching Operations of Rated Short-circuit Breaking Current	Times	30
Shelf Life	Years	20
Internal Gas Pressure	Pa	＜1.33 × 10-3
RATED OPERATING SEQUENCE	O-0.3s-CO-180s-CO
MECHANICAL DATA OF VACUUM SWITCH EQUIPPED WITH THE INTERRUPTERS
Average Opening Speed(first 6mm）	m/s	1.1 ± 0.2
Average Closing Speed(last 6mm)	m/s	0.6 ± 0.2
Contact Bounce Duration at Closing Operation	ms	≤ 2
Clearance Between Open Contacts	mm	11 ± 1
Out of Simultaneity of Contact Closing and Opening	ms	≤ 1
Rated Contact Pressure	N	3000⁺³⁰⁰₀
Added External Contact Force at Contact Touch Point	N	2100⁺²⁰⁰₀
Maximum Rebound During Opening	mm	≤ 2
Note 1:Meets or exceeds the electrical endurance requirements of calss E2 per IEC 62271-100 and GB 1984-2014. Note 2:"*"Rated insulation values require external insulation, such as SF6,transformer oil or solid dielectric material etc. Note 3:"★"Rated characteristics to be given on request. Note 4:In order not to damage the metal bellows, the movable stem should be prevented from rotation when assembling. For more requirements please check the instructions of Usage.
